11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Product Description

11-0.4kV 1600kVA Oil-immersed Distribution Transformer with Copper Wiindings

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Transformer Advantage
1. Low loss, low noise, low partial discharge.
2. Strong anti-short circuit capability and high anti-lightning impact level.
3. Excellent moisture resistance for operation at 100% relative humidity.
4. Strong overload capability for long-term operation at 150% loading.



Transformer Test Report
1. KEMA Test Report for Oil immersed Transformer
2. CE  Test Report for Oil immersed Transformer.
3. CNCE Test Report for Oil immersed Transformer.
4. CEST Test Report for Oil immersed Transformer.
5. CTQC Test Report for Oil immersed Transformer.
6. CNAS Test Report for Oil immersed Transformer.


11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Transformer Chracteristics

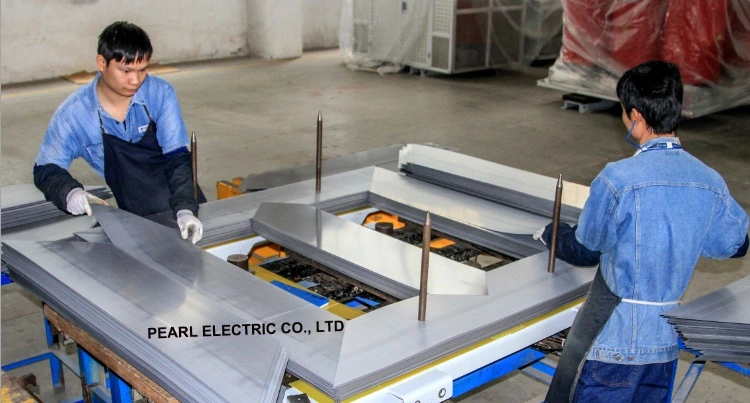

Transformer Core
1. The core is made of high quality grain-oriented cold-rollled silicon steel of high magnetic conductivity, by using 45°five-stepping all leaning lamination way to laminat. So the no-load losss and the no-load current are reduced effiently.

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

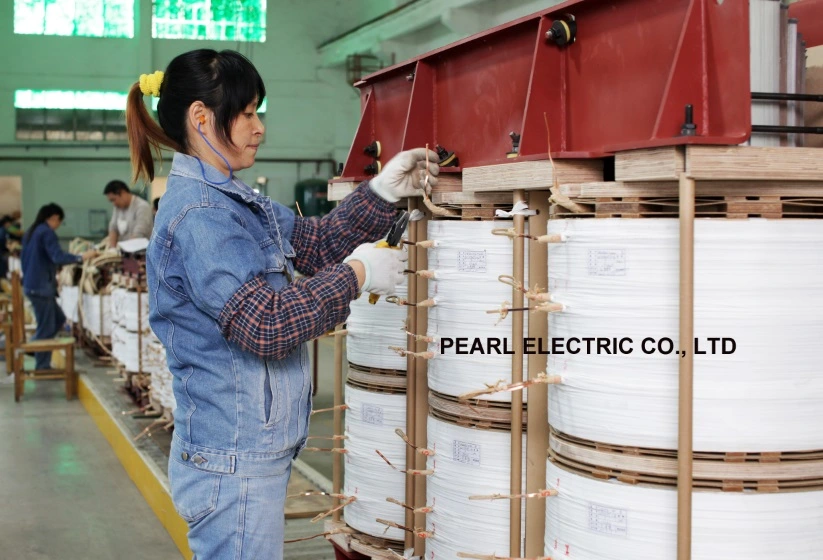

Transformer Windings

LV windings
1. LV winding is manufactured with high quality foil conductor or copper wire, and the ampere-turn is balanceable.The additional loss is low and the ability of anti-short is improved.
2. Oil drains of heat dispersion aer scientifically used in the winding, and the surface of heat dissipation is increased, so the tempertature is reduced and the ability of over-load is improved.

HV windings
HV winding is manufactured with high quality copper wire and excellent design structure. It improves the distribution of electric filed. With lighting impulse analysis, the ability of anti-lighting impulse hase been improved.



11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Hot  sale Trasformer Catalogue

Transformer Model No.Capacity (kVA)HV (KV)LV (kV)DescriptionPrice(USD)
PEO-S-250/11/0.4250110.4Oil immersed transformerKindly contact us for latest price.
PEO-S-400/11/0.4400110.4
PEO-S-800/11/0.4800110.4
PEO-S-1250/11/0.41250110.4
PEO-S-2500/11/0.42500200.4
PEO-S-3200/11/0.43200200.4
PEO-S-5000/11/0.45000350.4
PEO-S-10000/11/0.410000350.4

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

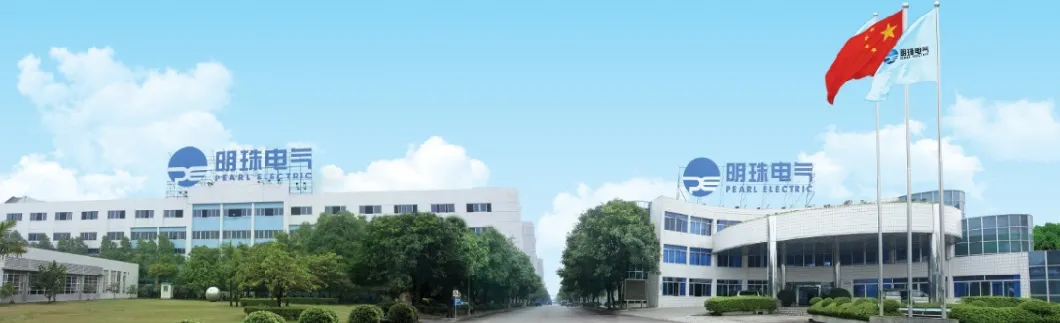

PEARL ELECTRIC CO., LTD

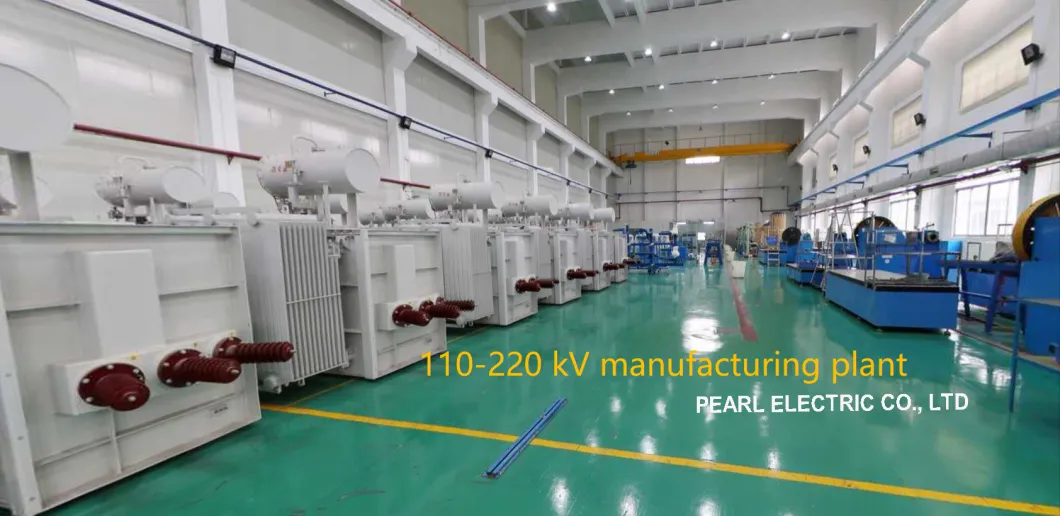

Established in 1958, located in Guangzhou City,  Pearl Electric Co., Ltd is one of  the most prominent Power Transformer manufacturer in China which design, produce and supply power transformers in domestic and abroad with almost 660 employees, more than 260 sets of specialized manufacturing equipment and 90,000 square meters area .

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

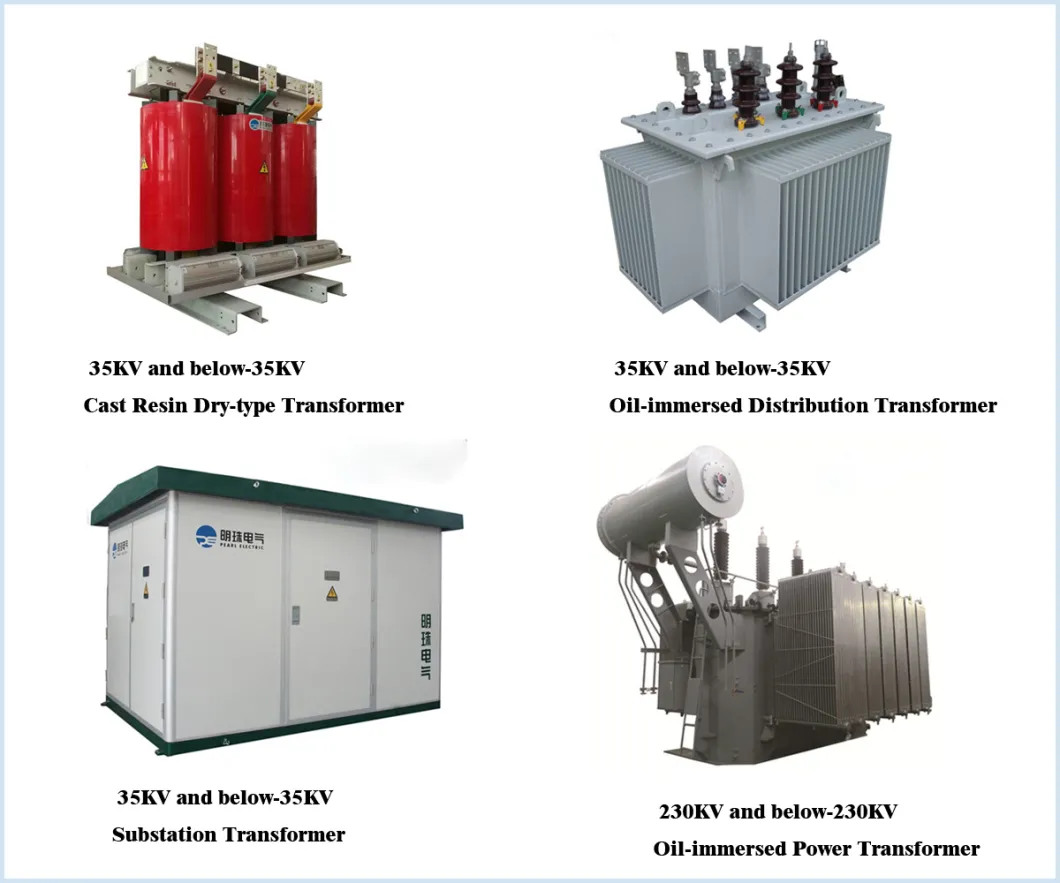

PEARL ELETRIC DESIGNS, MANUFACTURES AND SUPPLIES:
Staple ItemsAnnual Production Capability
Oil-immersed Transformer    2.5 million kVA
Dry-type transformer      2 million Kva
Amorphous dry-type transformer   1 million
Amorphous oil-immersed transformer 2.28 million kVA
Pad-mounted transformer for wind power plant 500 sets
Pre-fabricated substation for wind power plant  500 sets
10kV pad-mounted transformer/pre-fabricated substation500 sets
Arc suppression reactor earthing assembly    360 sets
Reactor        1.20 million kVA

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

PEARL'S RESEARCH & DESIGN TEAM

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

INDUSTRIAL USERS IN DOMESTIC AND ABROAD



11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings


FAQ:

 1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Can I get guarantee of products?
    A:  Yes, every product is 1 year quality warrantee under customer correct using the products.
3.Q: Do you have any Certificate?
    A: Yes. Each of our unit has CE, 3C and KEMA certificate. If you need any Other Certificate, we can help you to apply it.
4.Q: How can I pay you?
    A: Pay by T/T and  L/C is acceptable.
5.Q: What about the production?
    A: In general,  it take 4~6weeks and it depend on the different style.


Any need for power transformer, please feel free to contact us:
Sandy | Oversea sales | Oversea Dept.
Pearl Electric Co., Ltd.
Add: No. 118 Donghuan Road, Donghuan Street, Panyu Distric, Guangzhou City, Guangdong Province, China.  ZIP: 511400
Web:




Contact us if you need more details on Transformer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Power Transformer、Transformer Price. If these products fail to match your need, please contact us and we would like to provide relevant information.
