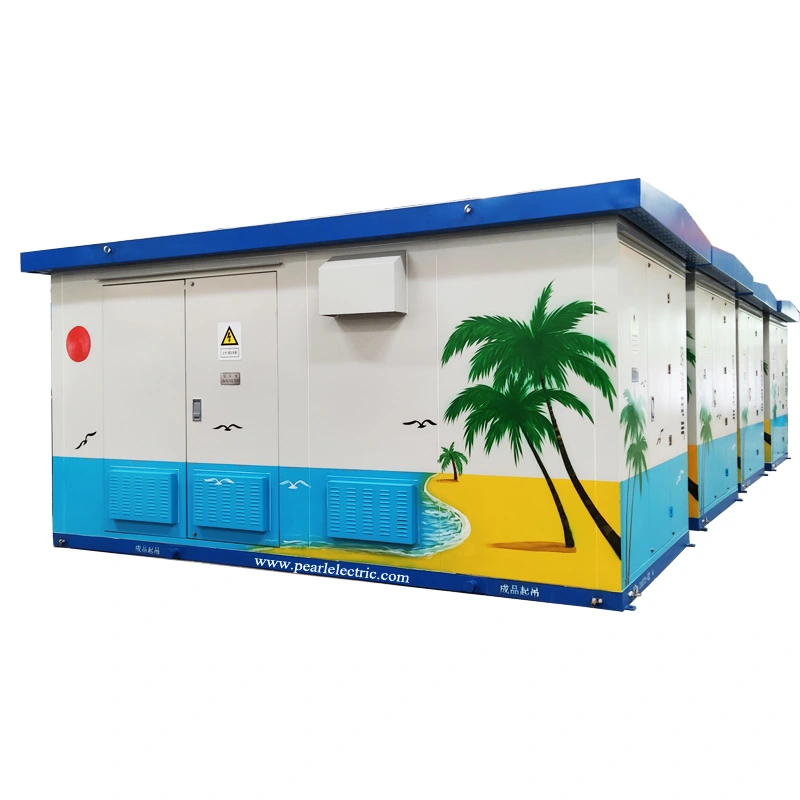

Prefabricated Compact Transformers Substation Suitable for Different Conditions of Use and Load Levels

Prefabricated Compact Transformers Substation Suitable for Different Conditions of Use and Load Levels

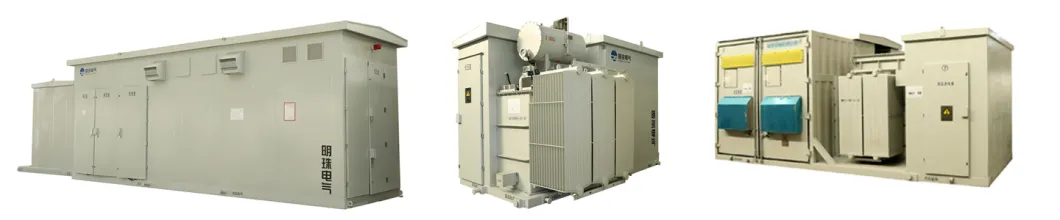

Pre-fabricated Transformer Substation:

Pre-fabricated substation consists of HV switch, transformer, LV switch, auxiliary equipment, connection parts, etc. as a set of booster equipment. The type of transformer can use Oil-immersed Transformer or dry-type transformer
This product is mainly used for outdoor and booster place with non-excitation pressure regulators

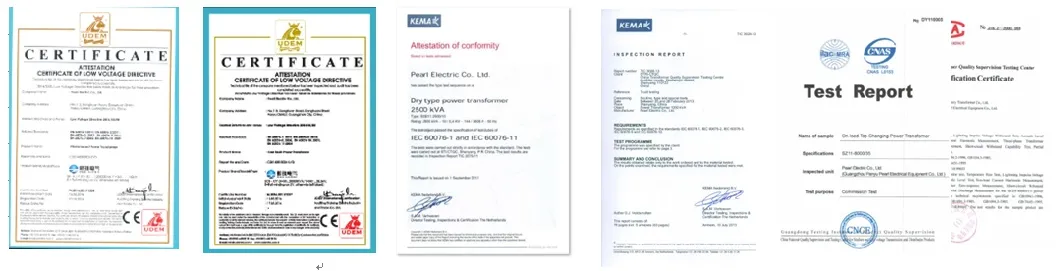

Transformer Test Report
1. KEMA Test Report for Oil immersed Transformer
2. CE  Test Report for Oil immersed Transformer.
3. CNCE Test Report for Oil immersed Transformer.
4. CEST Test Report for Oil immersed Transformer.
5. CTQC Test Report for Oil immersed Transformer.
6. CNAS Test Report for Oil immersed Transformer.



Transformer Chracteristics

Transformer Core
1. The core is made of high quality grain-oriented cold-rollled silicon steel of high magnetic conductivity, by using 45°five-stepping all leaning lamination way to laminat. So the no-load losss and the no-load current are reduced effiently.



Transformer Windings

LV windings
1. LV winding is manufactured with high quality foil conductor or copper wire, and the ampere-turn is balanceable.The additional loss is low and the ability of anti-short is improved.
2. Oil drains of heat dispersion aer scientifically used in the winding, and the surface of heat dissipation is increased, so the tempertature is reduced and the ability of over-load is improved.

HV windings
HV winding is manufactured with high quality copper wire and excellent design structure. It improves the distribution of electric filed. With lighting impulse analysis, the ability of anti-lighting impulse hase been improved.




Substation Transformer  for New-energy Power Generation






PEARL ELECTRIC CO., LTD

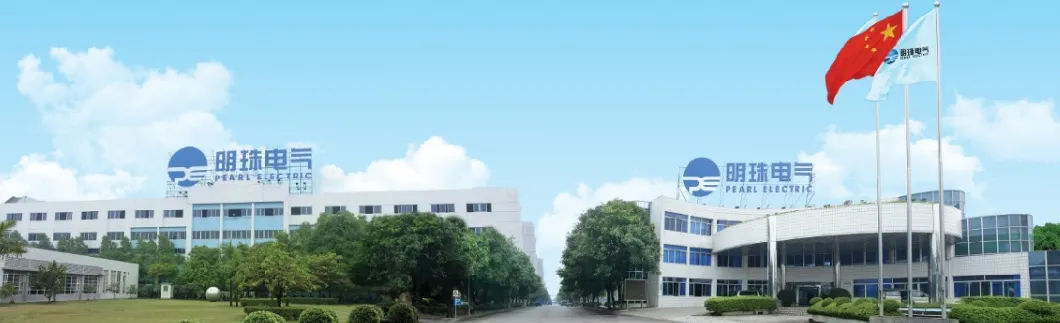

Established in 1958, located in Guangzhou City,  Pearl Electric Co., Ltd is one of  the most prominent Power Transformer manufacturer in China which design, produce and supply power transformers in domestic and abroad with almost 660 employees, more than 260 sets of specialized manufacturing equipment and 90,000 square meters area .









PEARL ELETRIC DESIGNS, MANUFACTURES AND SUPPLIES:


PEARL'S RESEARCH & DESIGN TEAM



INDUSTRIAL USERS IN DOMESTIC AND ABROAD




FAQ:
 1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Can I get guarantee of products?
    A:  Yes, every product is 1 year quality warrantee under customer correct using the products.
3.Q: Do you have any Certificate?
    A: Yes. Each of our unit has CE, 3C and KEMA certificate. If you need any Other Certificate, we can help you to apply it.
4.Q: How can I pay you?
    A: Pay by T/T and  L/C is acceptable.
5.Q: What about the production?
    A: In general,  it take 4~6weeks and it depend on the different style.
