Compact Transformer Substation for Three-Phase AC Systems with a Rated Voltage of 11kv or 33kv

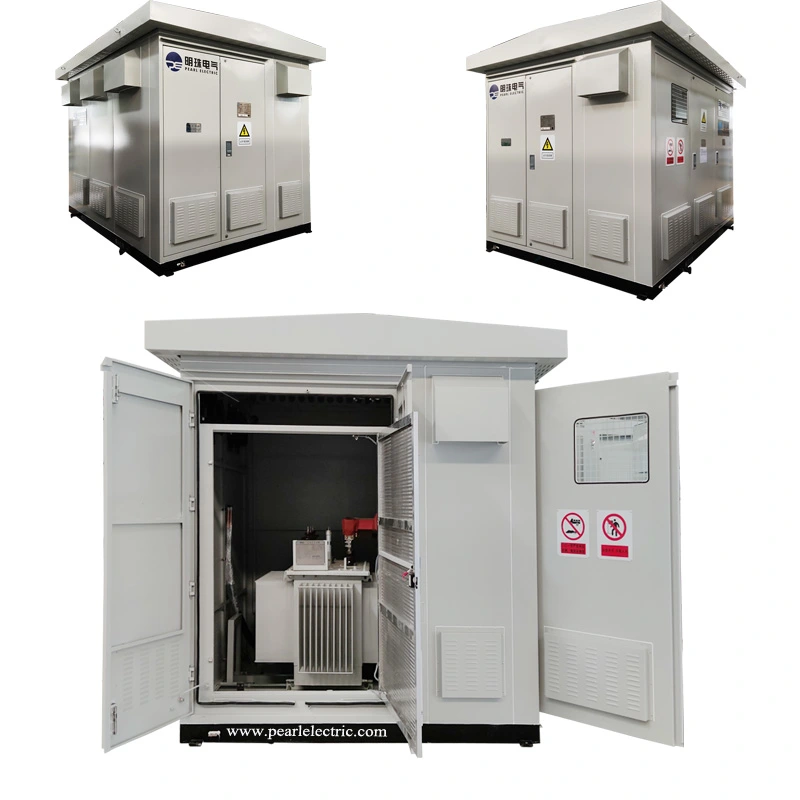

Pre-fabricated Transformer Substation:
Pre-fabricated substation consists of HV switch, transformer, LV switch, auxiliary equipment, connection parts, etc. as a set of booster equipment. The type of transformer can use Oil-immersed Transformer or dry-type transformer
This product is mainly used for outdoor and booster place with non-excitation pressure regulators
Transformer Test Report
1. KEMA Test Report for Oil immersed Transformer
2. CE Test Report for Oil immersed Transformer.
3. CNCE Test Report for Oil immersed Transformer.
4. CEST Test Report for Oil immersed Transformer.
5. CTQC Test Report for Oil immersed Transformer.
6. CNAS Test Report for Oil immersed Transformer.

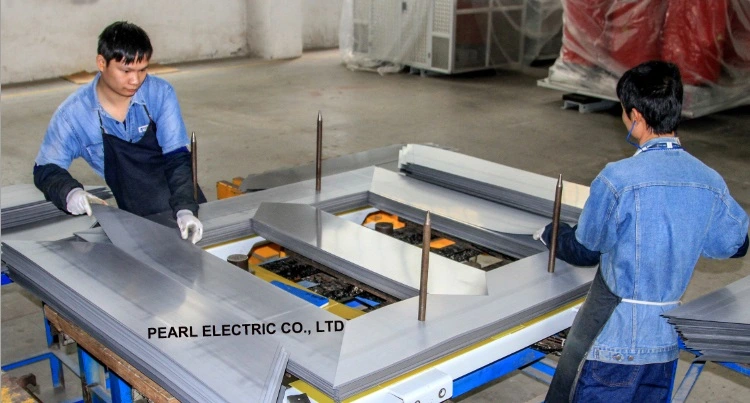

1. The core is made of high quality grain-oriented cold-rollled silicon steel of high magnetic conductivity, by using 45°five-stepping all leaning lamination way to laminat. So the no-load losss and the no-load current are reduced effiently.

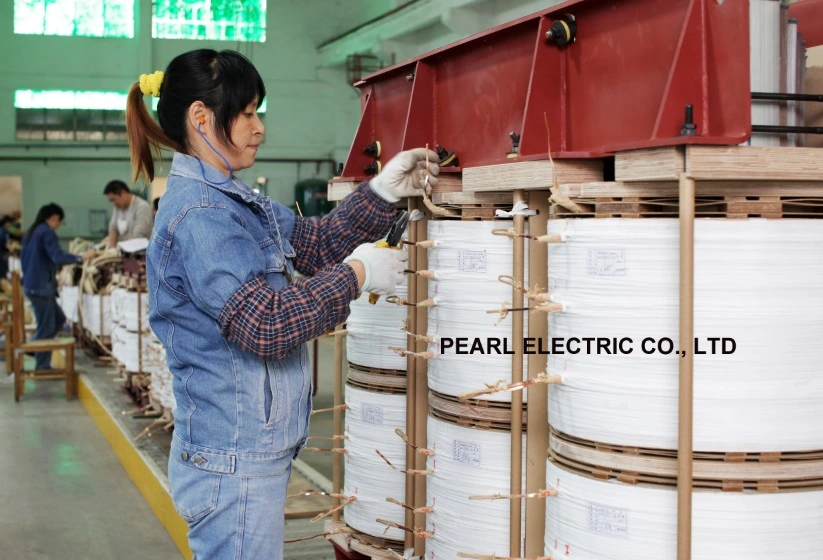

1. LV winding is manufactured with high quality foil conductor or copper wire, and the ampere-turn is balanceable.The additional loss is low and the ability of anti-short is improved.
2. Oil drains of heat dispersion aer scientifically used in the winding, and the surface of heat dissipation is increased, so the tempertature is reduced and the ability of over-load is improved.
HV winding is manufactured with high quality copper wire and excellent design structure. It improves the distribution of electric filed. With lighting impulse analysis, the ability of anti-lighting impulse hase been improved.

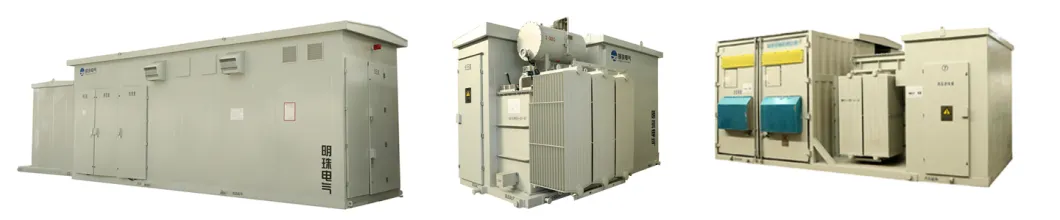

Substation Transformer for New-energy Power Generation
PEARL ELECTRIC CO., LTD

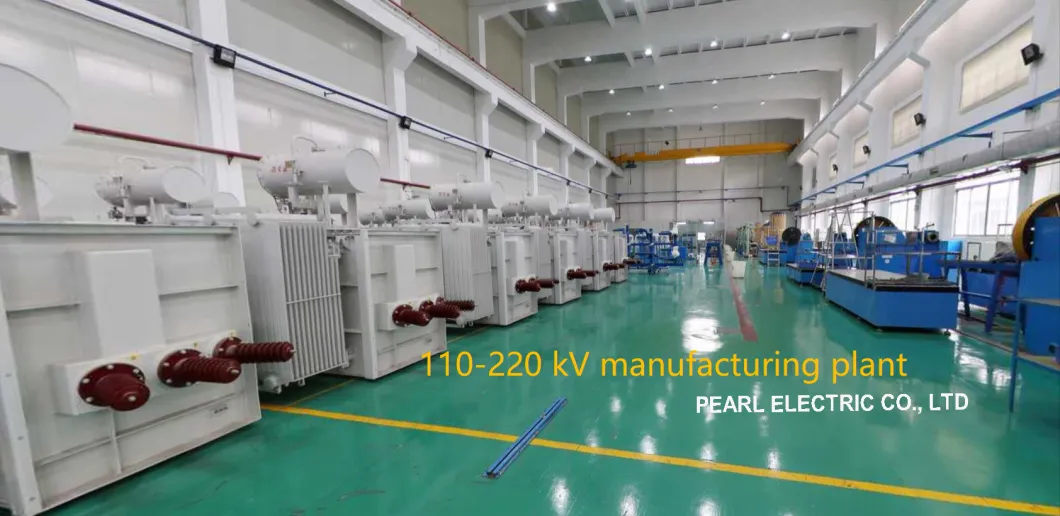

Established in 1958, located in Guangzhou City, Pearl Electric Co., Ltd is one of the most prominent Power Transformer manufacturer in China which design, produce and supply power transformers in domestic and abroad with almost 660 employees, more than 260 sets of specialized manufacturing equipment and 90,000 square meters area .
PEARL ELETRIC DESIGNS, MANUFACTURES AND SUPPLIES:
|Staple Items||Annual Production Capability|
|Oil-immersed transformer||2.5 million kVA|
|Dry-type transformer||2 million Kva|
|Amorphous dry-type transformer||1 million|
|Amorphous oil-immersed transformer||2.28 million kVA|
|Pad-mounted transformer for wind power plant||500 sets|
|Pre-fabricated substation for wind power plant||500 sets|
|10kV pad-mounted transformer/pre-fabricated substation||500 sets|
|Arc suppression reactor earthing assembly||360 sets|
|Reactor||1.20 million kVA|
PEARL'S RESEARCH & DESIGN TEAM
INDUSTRIAL USERS IN DOMESTIC AND ABROAD
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CE, 3C and KEMA certificate. If you need any Other Certificate, we can help you to apply it.
4.Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.
5.Q: What about the production?
A: In general, it take 4~6weeks and it depend on the different style.
Any need for power transformer, please feel free to contact us:
Sandy | Oversea sales | Oversea Dept.
Pearl Electric Co., Ltd.
Add: No. 118 Donghuan Road, Donghuan Street, Panyu Distric, Guangzhou City, Guangdong Province, China. ZIP: 511400
